40V max XGT® Brushless Cordless 10-1/4″ Circular Saw with Guide Rail Compatible Base, AWS® Capable, Tool Only

Add your review

$649.00

  • Powerful 40V brushless motor
  • Cutting capacity of 3-13/16″ at 90°
  • Bevel cut capacity up to 1° left and 60° right
  • positive stops at 22.5° and 45°
  • Guide rail compatible saw base for straight and bevel cutting
  • XGT® system for high-demand applications
How this tool compares to similar tools in our database.
Weight (lbs):
Lightest
Heaviest
Length (in):
Shortest
Longest
Speed (RPM):
Lowest
Highest
Cut Depth:
Shallowest
Deepest
Last updated on 2025-08-28 10:25 am
SKU: GSH04Z

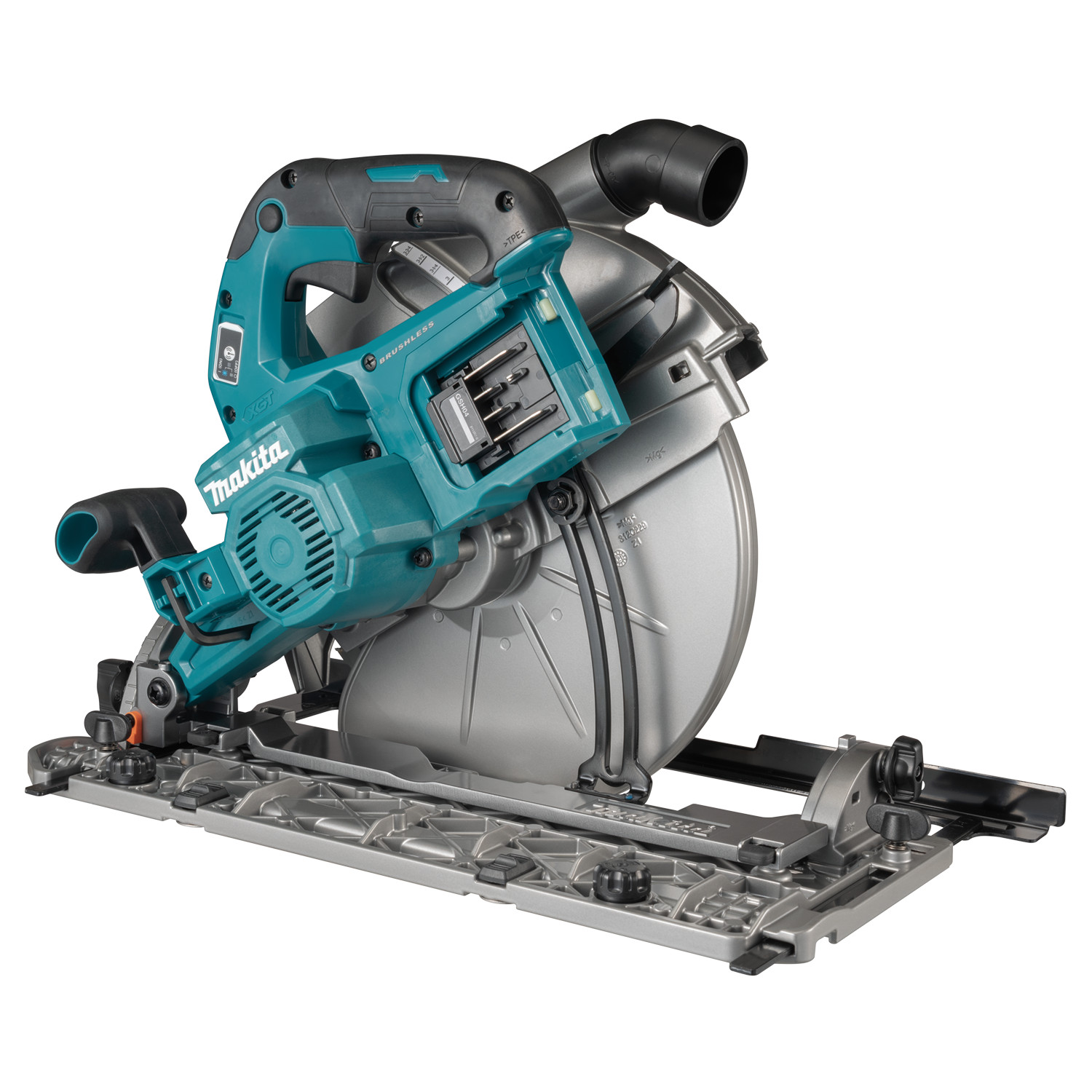

The Makita 40V max XGT® Brushless 10-1/4″ Circular Saw with Guide Rail Compatible Base offers efficient cutting performance and guide rail compatibility. With its Makita-built brushless motor, it can deliver up to 3,500 RPM cutting speed, with constant speed control that automatically adjusts power output under load. It has a 3-13/16” cutting capacity at 90°, and a bevel cut capacity of up to 1° left and 60° right, with positive stops at 22.5° and 45°. Made with a die-cast magnesium base, blade guard, and blade cover, it is lightweight at only 13.4 lbs. (battery sold separately).

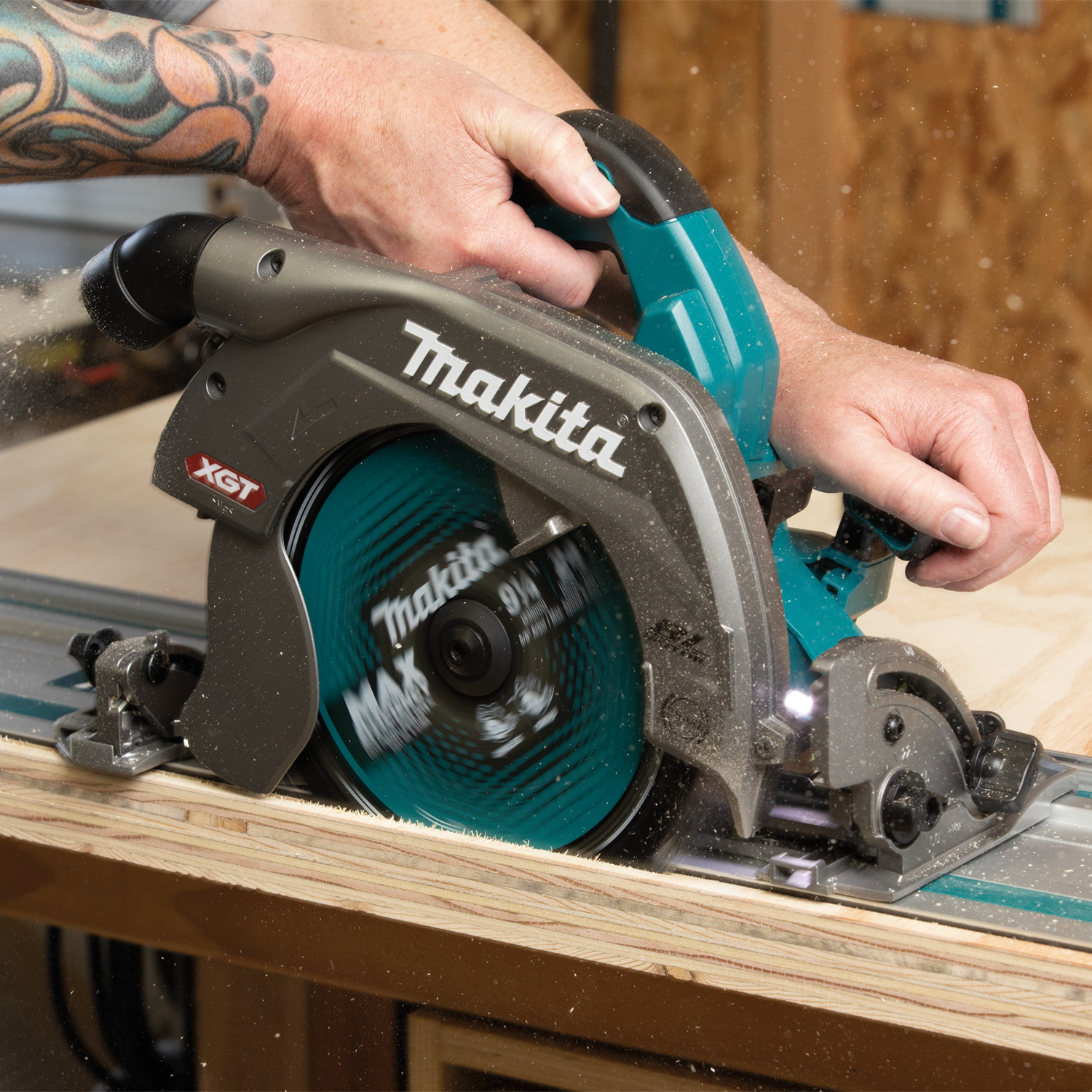

This saw features a guide rail compatible base that interacts with optional guide rails to allow for straight or bevel cutting without the need for an adapter. When combined with a guide rail (sold separately), the GSH04 is a more portable option over a table saw for a range of cutting applications.

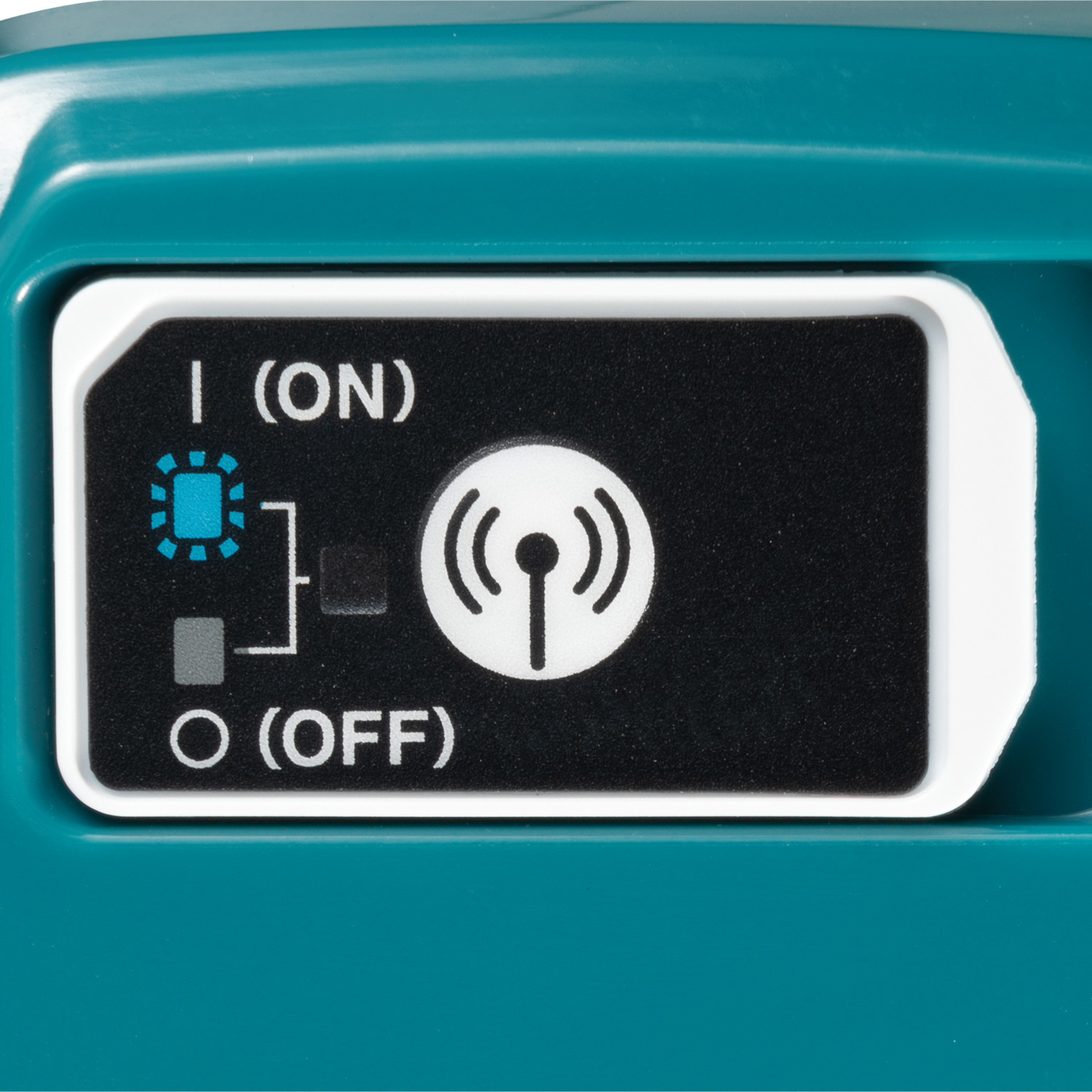

In addition to its cutting capabilities, this saw features Auto-Start Wireless System (AWS®), which uses Bluetooth® technology for wireless power-on/power-off communication between the tool and an AWS® equipped dust extractor. The saw also has an electronic brake for maximum productivity and soft start to suppress start-up reaction for smoother start-ups and longer gear life.

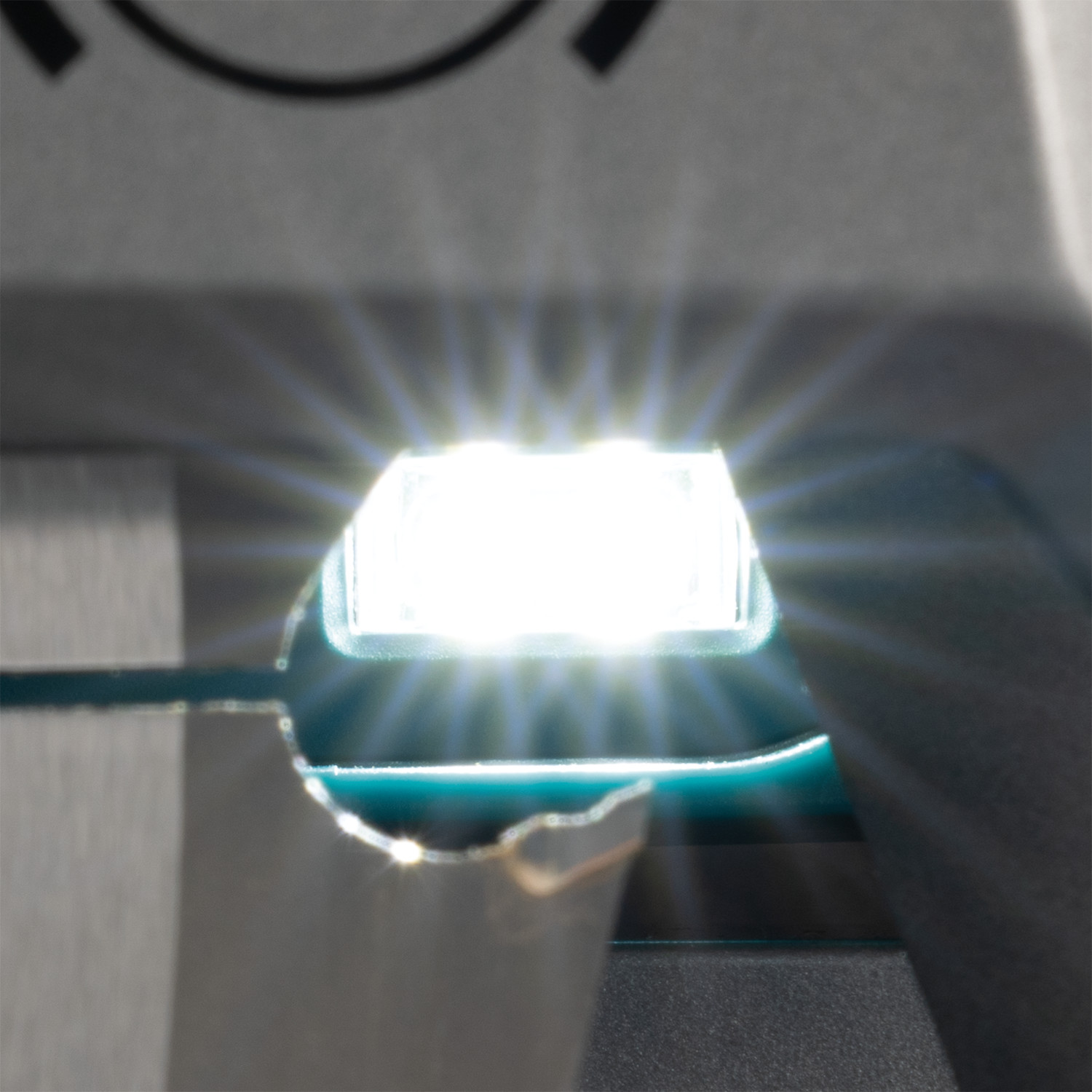

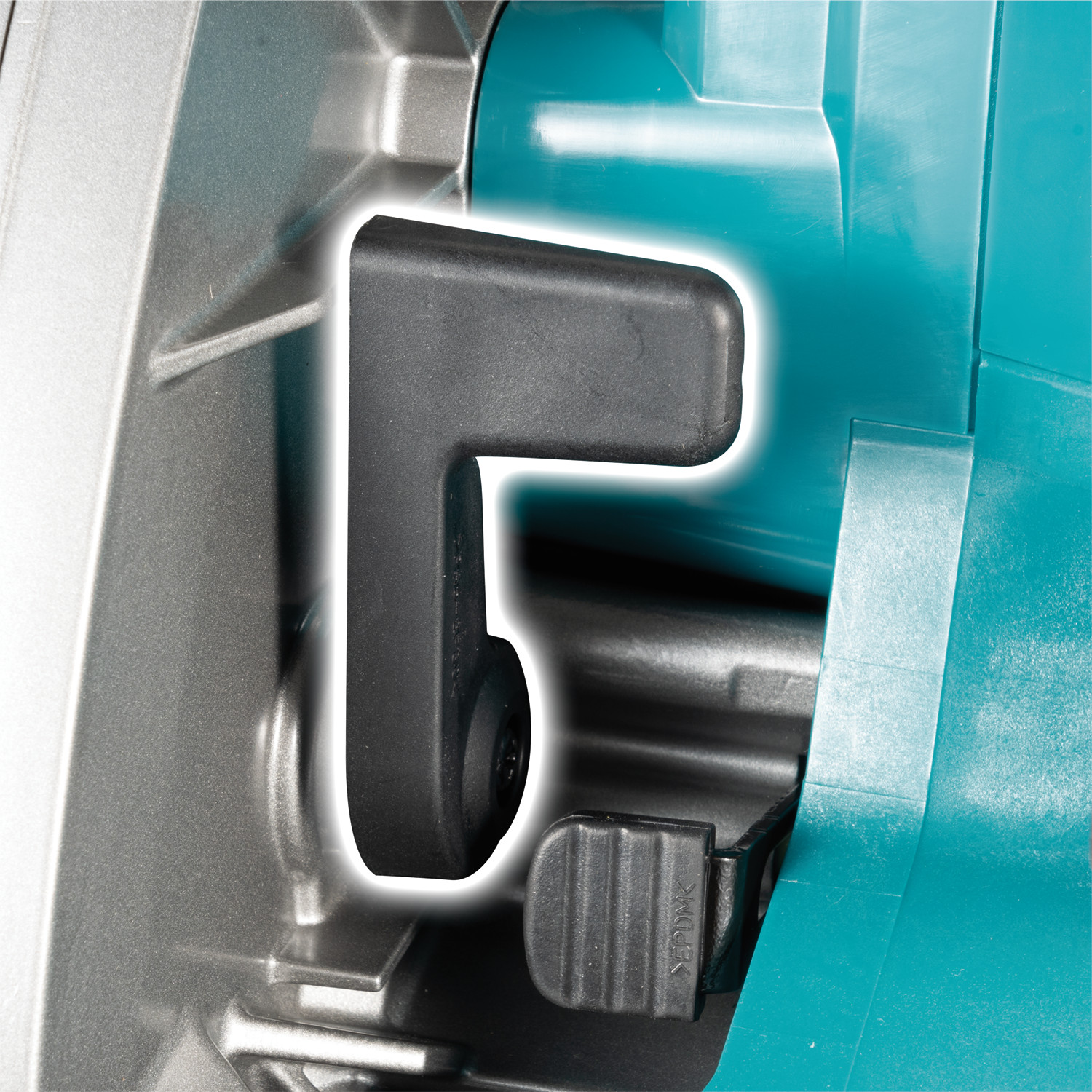

Convenience features include an L.E.D. light to illuminate the work area, an onboard hex wrench for blade changes, and a secondary handle for two-handed operation.

XGT® is a system of equipment, tools, batteries, and chargers utilizing 40v max lithium-ion batteries. It is designed to deliver high power for high-demand applications, allowing users to completely transition to a cordless job site. XGT is equipped with advanced brushless motor engineering, intelligent digital communication, and superior durability features.

Specification: 40V max XGT® Brushless Cordless 10-1/4″ Circular Saw with Guide Rail Compatible Base, AWS® Capable, Tool Only

📦 Contents
Package

Tool Only

Includes

Rip Guide, Saw Blade, Wrench

Warranty

3 Year Limited

🔋 Battery
Platform

XGT®

Voltage

40V

Battery Chemistry

Lithium Ion

📏 Dimensions
Length (in)

17.875

Weight (lbs)

12.73

🥇 Build Quality (Materials)
Shoe (Base Plate)

Magnesium

Upper Guard

Magnesium

Lower Guard

Magnesium

⚙️ Specifications​
Blade Size

10-1/4"

Arbor Size

5/8"

Bevel Capacity

-1°- 60°

Cut Depth at 45°

2-11/16"

Cut Depth at 90°

3-13/16"

Speed (RPM)

3500

Motor Type

Brushless

Positive Stops

22.5°, 45°

✅ Features​
Electric Brake

Yes

LED Light

Yes

Overload Protection

Yes

Documentation

Manual Parts List & Diagram
